Engineering a Pedicure Dust Collector from Scratch

During a machine pedicure, the rotary drill throws a cloud of fine dust into the air. It’s not just ground keratin from nails—it’s micro-particles of dead skin and fungal pathogens. For a technician doing four to six clients a day, breathing that in is a direct route to chronic respiratory issues.

Most commercial beauty equipment on the market is either frustratingly expensive or riddled with practical flaws: awkward cylindrical layouts that choke on filters, messy maintenance that dumps dust right back into the salon air, or underpowered blowers that rattle within months.

Instead of settling for off-the-shelf compromises, I decided to build my own extractor from the ground up. Over the past few years, I built three iterations with my own hands—figuring out the fluid dynamics, testing fan architectures, and moving from rough wooden prototypes to custom 3D-printed enclosures to solve the real daily needs of a working salon.

My first attempt was back when I ran a beauty coworking space. I integrated the extractor directly into the wooden podium under the pedicure chair.

I started with standard ventilation components: an inline channel (axial) duct fan, a wooden plenum box, a standard 12x12 car air filter, and corrugated ducting attached to an adjustable ring light arm so the intake could hover near the client’s foot.

It worked, but it was far from an engineered solution. It was bulky, ran loudly, and having the filter buried inside the wooden podium made checking and emptying it a hassle.

When we moved to Vietnam, the question came up again. The local market had nothing suitable, and importing equipment was expensive. I sat down to look at the fluid dynamics before building the next version.

Blowing air behaves like a laser beam—it stays focused over long distances. Sucking air behaves like a lightbulb—it draws from all directions equally, creating an expanding spherical field. Because velocity disperses spherically, suction decays dramatically with every centimeter away from the nozzle.

Airflow (CFM) under real filter load is the single most important metric dictating capture distance. The more cubic feet of air your fan actually pulls per minute through the filter, the larger that suction bubble is. If your fan chokes and loses CFM under resistance, your capture zone collapses to nothing, and fine dust escapes into the room.

Filters are rated by pressure drop (resistance measured in Pascals). Our pleated manicure filter creates around 100 Pa of resistance. Once you put that filter in front of the three main fan architectures, their real-world performance diverges completely:

• The Axial Fan (17251 AC, 28W): Dead from the start. It boasts an impressive ~230 CFM in open air, but has practically zero static pressure (~150 to 195 Pa max). The second it hits our ~100 Pa filter, airflow plummets to a pathetic ~30 CFM trickle, and it stalls completely shortly after. The blades just chop turbulent air in place.
• The Vacuum Turbine (1,400W): Immune to resistance, but deafening. Spinning at 25,000+ RPM with up to 30,000 Pa of static pressure, it doesn't even notice a 100 Pa filter—delivering its full ~110 CFM without breaking a sweat. But it pulls 1,400 Watts, dumps massive heat, and screams at 90+ dBA.
• The Centrifugal Blower (130FLJ5, 120W): The practical sweet spot. Spinning at a civilized 2,600 RPM, it pushes ~194 CFM in free air with ~350 Pa of static pressure. Against our ~100 Pa filter, it retains a solid ~148 CFM. That sustained airflow keeps the suction bubble large enough to pull in heavy nail dust from 12+ cm away without deafening the salon.

Finding the right rotor is the main hurdle. Backward-curved impellers are quieter and handle pressure better, but in the compact size and noise range I needed, the local market only had forward-curved blowers. It wasn't the ideal aerodynamic profile, but it worked.

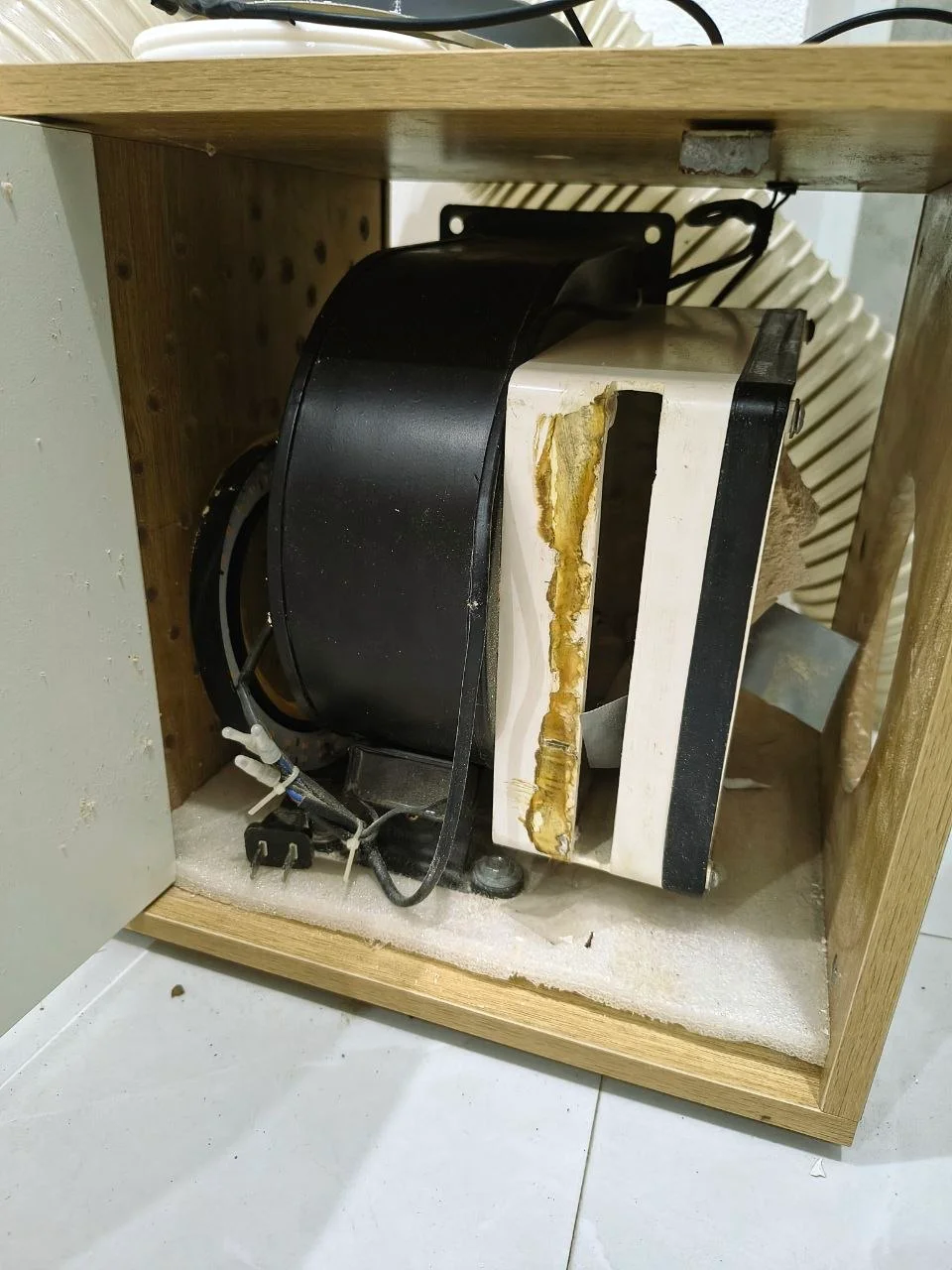

With the fan type decided, I built V0.2 on the floor with an angle grinder and a screwdriver.

I needed a rigid, heavy housing that wouldn't vibrate or cost a fortune to fabricate. I bought a cheap wooden bedside table to act as the chassis. Inside, I mounted:

• The centrifugal blower fan on dampening pads.
• A heavy-duty plastic junction box routed to the blower's intake.
• A slot cut into the box to slide in a standard flat manicure dust filter.
• Flexible duct hose routed to the ring light mount.

The slide-in slot made maintenance much faster than taking apart a bucket chassis. But V0.2 had a design flaw of its own: I oriented the slot vertically. Whenever the technician pulled the filter out to tap it clean, gravity made loose dust slide off the edge and spill onto the floor.

Still, that bedside-table prototype ran in production daily for over a year.

Eventually, mechanical wear on the wooden frame caught up with us, and we wanted a cleaner, salon-grade form factor.

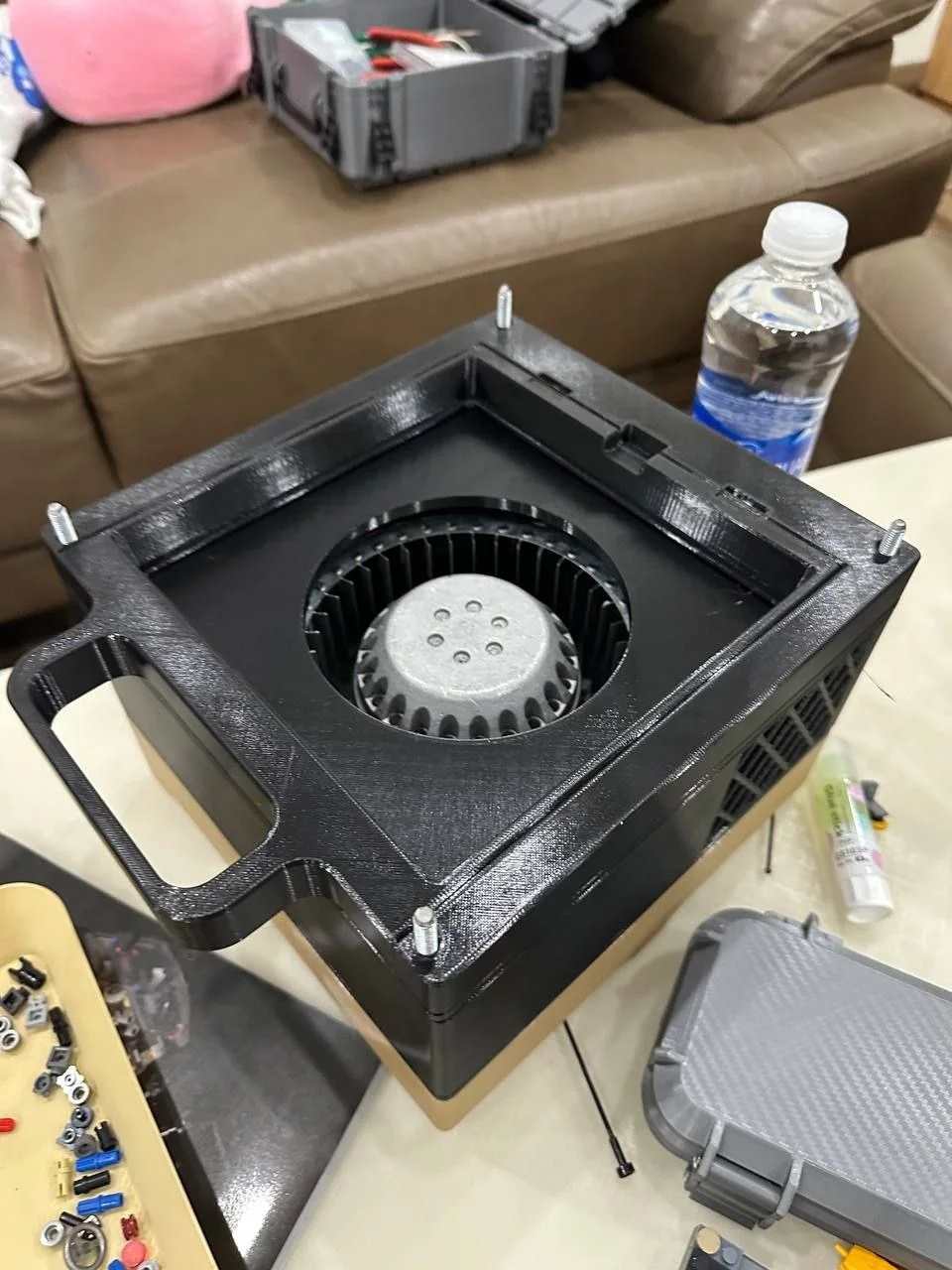

I met an expat in Vietnam who did 3D modeling and printing. We designed a custom monocoque enclosure around the snail fan, a mount for the lamp arm, and fixed the V0.2 mistake by designing a horizontal slide-out filter tray. Now, when you slide the filter out flat, all the settled dust stays safely trapped on the pleats until you tap it over a bin.

V0.3 was compact, looked like a real product, and cut down vibration noise significantly. But early prototypes always bring practical lessons:

• Center of gravity: The moment we attached the heavy flexible nozzle arm, the leverage flipped the balance forward. The box started tipping over. The quick workshop fix? We literally glued the base to the table so it wouldn't fall.
• Simple wiring: There is no internal power distribution or switch on the chassis—it just runs off the inline rocker switch on the adapter cord.

It was a huge step up from the bedside table. Unfortunately, before we could experiment with custom backward-curved impellers to lower the noise further, my expat collaborator went off the radar—taking the CAD source files with him.

Right now, V0.3 is glued to the table, doing daily duty in the salon. The project is on pause until I redraw the CAD models from scratch.

For Version 0.4, the priorities are clear:

1. Integrated heavy-duty clamp: Build a sturdy desk clamp directly into the base structure so the unit remains rock solid regardless of how the technician positions the nozzle arm.
2. Custom backward-curved impeller: 3D print our own rotor tailored to the motor's RPM to drop the noise floor without sacrificing static pressure.
